Joint Sleeve

Use for connecting two pipes of the same size.

Order Label ID:

MS = [Size of Pipes Inner Diameter]

E.g: a joint -sleeve for AION pipe 100 would be MS – 100

Măng sông ống xoắn hdpe

Specifications

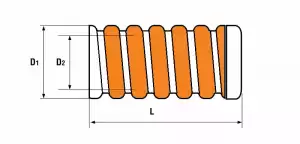

STT ID D1 (mm) D2 (mm) L (mm)
1. MS – 25 35 27 60
2. MS – 30 45 32 65
3. MS – 40 60 42 85
4. MS – 50 70 53 110
5 MS – 65 90 67 130
6. MS – 70 95 73
7. MS – 80 110 83 165
8. MS – 90 113 94
9. MS – 100 140 103 200
10. MS – 125 170 128 240
11. MS – 150 204 155 260
12. MS – 160 215 165
13 MS – 175 238 180
14 MS – 200 270 205 330
15 MS – 250 328 258

Installation Instructions

Hướng dẫn lắp đặt ống xoắn hdpe ospen
Step 1
Fasten a joint-sleeve to the end of a pipe by turning it clockwise, then cut off the cap of the joint sleeve if there is one

Hướng dẫn lắp đặt ống xoắn Ospen
Step 2
Bring the end of the second pipe closer to the one with the joint -sleeve fastened on. Turn the joint-sleeve counterclockwise untill the contact between the two pipes is a not at the midpoint of the joint-sleeve

Hướng dẫn lắp đặt ống xoắn hdpe ospen
Step 3
Use rubber tape to wrap tightly around the pipe where there is a gap between the and the joint-sleeve

Ống nhựa xoắn hdpe
Bước 4
Use a heating torch to melt the rubber tape.

Ống xoắn Ospen

Bước 5
Wrap water-resistant PVC tape around the pipe outside the rubber tape.

Phụ kiện ống xoắn hdpe
Bước 6
The completed joint.

The complet joint

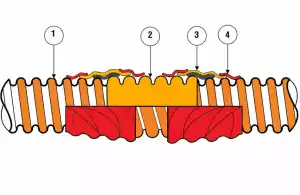

1. AION hdpe pipe

2. Joint-sleeve

3. Rubber tape

4. PVC tape

Ống nhựa xoắn hdpe măng sông
