An Dat Phat Group is a leading manufacturer of HDPE flexible pipes for power and telecommunication cable protection applications.

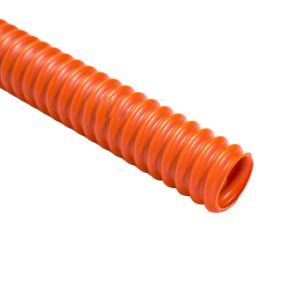

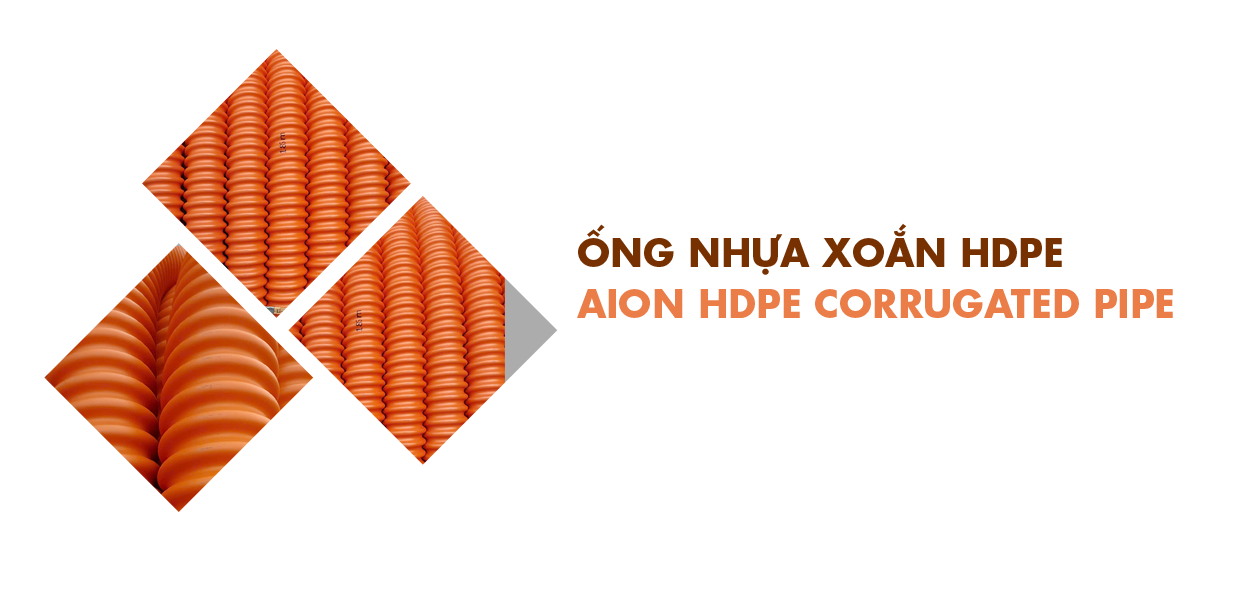

Our AION HDPE Corrugated pipe, ranging from 25mm to 250mm in diameter, is produced using the most updated processes and automated technology, engineered specifically for best-in-class end products.
AION represents a new generation of solutions that combine technology, safety, and cost optimization. With AION, we are committed to delivering sustainable value and long-term efficiency to our customers and partners.
Technical Specifications
Các thông số kỹ thuật được sản xuất theo tiêu chuẩn TCVN, KCS,ISO… Bạn có thể gọi 0904.888.186 để được hỗ trợ.
| Stt | Loại ống(mm) | Đường kính trong (D2 mm) | Đường kính ngoài (D1 mm) | Bước ren (mm) | Độ dài cuộn ống (m) | Kích thước cuộn ống(m) |
|---|---|---|---|---|---|---|
| 1 | AION 25 | 25 ± 2,0 | 32 ± 2,0 | 8 ± 0,5 | 500 | 0,55 x 1,15 |
| 2 | AION 30 | 30 ± 2,0 | 40 ± 2,0 | 10 ± 0,5 | 300 | 0,55 x 1,18 |
| 3 | AION 40 | 40 ± 2,0 | 50 ± 2,0 | 13 ± 0,8 | 200 | 0,55 x 1,20 |
| 4 | AION 50 | 50 ± 2,5 | 65 ± 2,5 | 17 ± 1,0 | 200 | 0,65 x 1,35 |
| 5 | AION 65 | 65 ± 2,5 | 85 ± 2,5 | 21 ± 1,0 | 150 | 0,70 x 1,50 |
| 6 | AION 70 | 70 ± 2,5 | 90 ± 2,5 | 25 ± 1,0 | 150 | 0,70 x 1,60 |
| 7 | AION 80 | 80 ± 3,0 | 105 ± 3,0 | 25 ± 1,0 | 100 | 0,70 x 1,50 |
| 8 | AION 90 | 90 ± 3,0 | 110 ± 3,0 | 25 ± 1,0 | 100 | 0,70 x 1,60 |
| 9 | AION 100 | 100 ± 4,0 | 130 ± 4,0 | 30 ± 1,0 | 100 | 0,80 x 1,90 |
| 10 | AION 125 | 125 ± 4,0 | 160 ± 4,0 | 38 ± 1.0 | 50 | 0.80 x 1.60 |
| 11 | AION 150 | 150 ± 4.0 | 195 ± 4.0 | 45 ± 1.5 | 50 | 0,80 x 1,90 |
| 12. | AION 160 | 160 ± 4,0 | 210 ± 4.0 | 50 ± 1.5 | 50 | 0.80 x 2.05 |
| 13 | AION 175 | 175 ± 4.0 | 230 ± 4.0 | 55 ± 1.5 | 40 | 0.80 x 2.15 |
| 14 | AION 200 | 200 ± 4.0 | 260 ± 4.0 | 60 ± 1.5 | 30 | 0.80 x 2.20 |
| 15 | AION 250 | 250 ± 5.0 | 320 ± 5.0 | 70 ± 1.5 | 25 | 1.00 x 2.40 |
